SENSOLUTION™ pH800
2-Wire Analyser
SENSOLUTION™ pH800 2-Wire pH Analyser
Order Codes
pH800 pH analyser only: 500/0080
pH800 pH analyser in sighted Al box: 500/0081
pH800 Redox analyser in sighted Al box with BNC cable: 500/0082
pH800 ISE analyser in sighted Al box: 500/0083
The pH800 is a microprocessor controlled, loop powered isolated pH transmitter with all power being supplied from the two-wire current loop connection. Isolation enables the probe to be at a potential relative to ground without affecting the integrity of the measurement. The two-wire connection eliminates the requirement of a separate supply in addition to the loop supply voltage.
Features
-
Temperature-compensated pH, ISE or ORP measurement.
-
Two-wire field mounted transmitter – suitable for multiple-loop installations with a central controller.
-
Local display of pH/ORP/ISE and temperature – suitable for use as a stand-alone pH monitor.
-
Isolated 4-20mA signal.
-
Simple pushbutton operation.
-
Tough IP65 die-cast Aluminium enclosure (optional).
-
Push terminals for easy installation and maintenance.
-
Tool-free operation – no dip-switches or potentiometers.
-

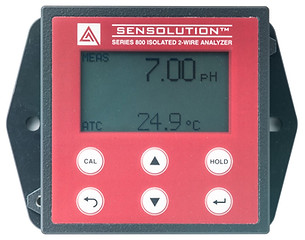

Suitable for masthead mounting (as pictured) or wall mounting.
The pH800 two-wire field mounted transmitters, with the appropriate sensors, are designed to continuously measure the pH, ORP or electrode potential (mV) in industrial processes. The pH800 transmitters include all the circuitry necessary for the measurement and transmission of an isolated 4-20mA linear signal. All the transmitter’s functions are accessible through the pushbutton interface – there are no potentiometers or dip-switches. Two-point calibration of the signal is accomplished using the standard calibration routine. The pH800 can also temperature compensate pH readings using a 100Ω TC element.
Technical Specifications
Measurements
pH Range
0.00pH to 14.00pH
pH Resolution
0.01pH
pH Accuracy
±0.01pH
Temperature Range
-10.0°C to 110.0°C
Temperature Resolution
0.1°C
Temperature Accuracy
±0.5°C
Temperature Compensation
Auto (Pt100) / Manual (from 0°C to 100°C)
Number of Calibration Points
2
Calibration Buffers
4.01, 7.00, 10.01
Electrical
Inputs
Asymmetrical / Symmetrical
Outputs
4.0mA to 20.0mA
Out-of-Range Current Output Under-Range
3.8mA / 4mA (selectable)
Out-of-Range Current Output Over-Range
3.8mA / 20mA (selectable)
Hold Current Output
22mA / Last measured value (selectable)
Display
Custom Dual LCD
Power Requirements
12V to 24V DC
Load Resistance
600Ω Max
